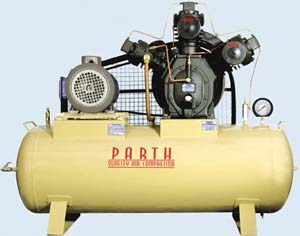

Two Stage Air Compressor
compressor-two
MODEL PE 200 T
compressor-two2 compressor-two1
MODEL PE 30 T MODEL PE 100 T
  • Two stage Air Compressors are meant for pressure requirement upto 175 PSIG (12.3 kg/cm2g).
  • Parth manufactures Air Cooled, Reciprocating, Single Acting Air Compressors.
  • Generally all pneumatic applications falls in the same range.
Two Stage Air Compressor
Model Piston Displacement Max. Pressure Motor H.P. No. of CYL. Air Receiver (Ltr.)
  CFM M3/H KG/CM2G PSIG
PE 30T 7.46 12.64 10.5 150 2.0 2 150
PE 30T 9.79 16.59 12.3 175 3.0 2 150
PE 50T 17.32 29.35 12.3 175 5.0 2 225
PE 75T 26.40 44.74 12.3 175 7.5 2 225
PE 100T 31.84 53.97 12.3 175 10.0 2 300
PE 150T 36.30 61.52 10.5 150 10.0 2 300
PE 150T 44.00 74.57 12.3 175 12.5 2 300
PE 150T 49.50 83.90 12.3 175 15.0 2 300/500
PE 200T 81.80 138.64 12.3 175 20.0 3 500
PE 300T 98.19 166.42 10.5 150 30.0 3 Base Plate Mounted
